hmap::DrainageBasinCellBased Class Reference

Represents a cell-based hydrology drainage basin network on a 2D heightmap grid. More...

#include <drainage_basin_cell_based.hpp>

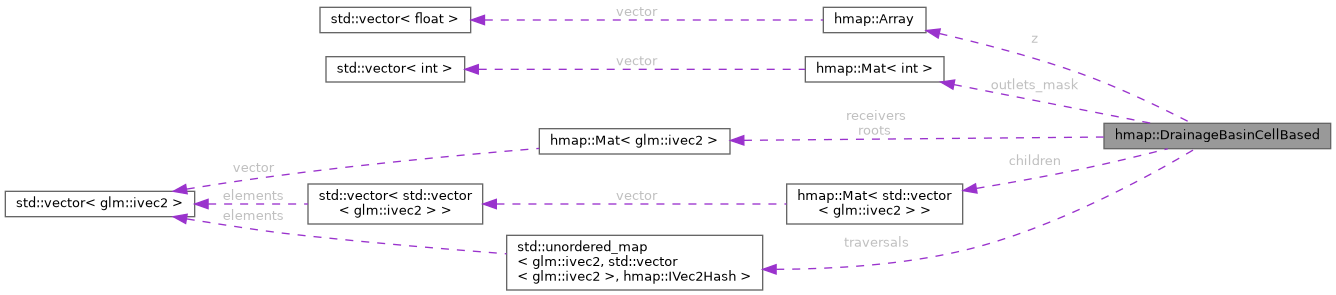

Collaboration diagram for hmap::DrainageBasinCellBased:

Public Member Functions
	DrainageBasinCellBased ()=default
	Default constructor.
	DrainageBasinCellBased (const Array &z_)
	Construct a new cell-based drainage basin using a heightmap.
const Array &	get_z () const
	Get the underlying heightmap array.
void	compute_receivers (unsigned int seed=0, float noise_strength=0.f)
	Compute flow receivers using standard D8, with optional noise.
void	compute_receivers_priority_flood ()
	Compute flow receivers using the priority flood routing algorithm.
void	update_stream_tree (unsigned int seed, float noise_strength)
	Update the stream tree stochastically.
void	update_stream_tree ()
	Update the stream tree deterministically.
void	update_traversals ()
	Update cached traversal orders for upstream/downstream computations.
std::vector< glm::ivec2 >	get_outlets () const
	Get the outlets of the basin.
void	set_outlets (const std::vector< glm::ivec2 > &outlet_indices)
	Set the outlets of the basin.
std::vector< std::vector< glm::ivec2 > >	compute_upstream_traversals ()
	Compute upstream traversal orders for the entire grid.
std::pair< Mat< glm::ivec2 >, bool >	find_subroots ()
	Find subroots of the flow network.
void	remove_lakes (const Mat< glm::ivec2 > &subroot)
	Remove lakes by draining local depressions.
std::vector< std::vector< glm::ivec2 > >	get_main_channels () const
	Get the main channel paths of the flow network.
Array	compute_response_times (const Array &area_acc, const Array &erodibility, float m_exp) const
	Compute response times of the basin cells.
float	update_elevations (const Array &response_times, float uplift_rate, const Array &max_slope)
	Update elevations based on response times and uplift.
void	accumulate_area_by_outlet (Array &acc) const
	Accumulate contributing area down the network by outlet.
void	flow_breach ()
	Perform flow breaching to resolve depressions.

Public Attributes
Array	z
	The heightmap array.
Mat< int >	outlets_mask
	Mask indicating outlet cells.
Mat< glm::ivec2 >	receivers
	Grid of receiver coordinates.
Mat< std::vector< glm::ivec2 > >	children
	Grid of children coordinates.
Mat< glm::ivec2 >	roots
	Grid of basin root.
std::unordered_map< glm::ivec2, std::vector< glm::ivec2 >, IVec2Hash >	traversals
const glm::ivec2	null_cell = glm::ivec2(-1, -1)
	Constant representing an.

Detailed Description

Represents a cell-based hydrology drainage basin network on a 2D heightmap grid.

This class implements hydrological flow network computations (receivers, outlets, main channels, upstream traversals) on a regular grid represented by a 2D Array.

Constructor & Destructor Documentation

DrainageBasinCellBased() [1/2]

hmap::DrainageBasinCellBased::DrainageBasinCellBased ( )

default

Default constructor.

DrainageBasinCellBased() [2/2]

hmap::DrainageBasinCellBased::DrainageBasinCellBased

(

const Array &

z_

)

Construct a new cell-based drainage basin using a heightmap.

Parameters

z_	The input heightmap array.

Member Function Documentation

get_z()

const Array & hmap::DrainageBasinCellBased::get_z

(

)

const

Get the underlying heightmap array.

Returns

A const reference to the heightmap Array.

compute_receivers()

void hmap::DrainageBasinCellBased::compute_receivers	(	unsigned int	seed = 0,
		float	noise_strength = 0.f
	)

Compute flow receivers using standard D8, with optional noise.

Parameters

seed	Seed for random generation.
noise_strength	Strength of elevation noise added for stochastic flow paths.

compute_receivers_priority_flood()

void hmap::DrainageBasinCellBased::compute_receivers_priority_flood

(

)

Compute flow receivers using the priority flood routing algorithm.

update_stream_tree() [1/2]

void hmap::DrainageBasinCellBased::update_stream_tree	(	unsigned int	seed,
		float	noise_strength
	)

Update the stream tree stochastically.

Parameters

seed	Seed for random generation.
noise_strength	Strength of noise.

update_stream_tree() [2/2]

void hmap::DrainageBasinCellBased::update_stream_tree

(

)

Update the stream tree deterministically.

update_traversals()

void hmap::DrainageBasinCellBased::update_traversals

(

)

Update cached traversal orders for upstream/downstream computations.

get_outlets()

std::vector< glm::ivec2 > hmap::DrainageBasinCellBased::get_outlets

(

)

const

Get the outlets of the basin.

Returns

A vector of 2D grid coordinates of the outlets.

set_outlets()

void hmap::DrainageBasinCellBased::set_outlets

(

const std::vector< glm::ivec2 > &

outlet_indices

)

Set the outlets of the basin.

Parameters

outlet_indices

Vector of outlet 2D coordinates.

compute_upstream_traversals()

std::vector< std::vector< glm::ivec2 > > hmap::DrainageBasinCellBased::compute_upstream_traversals

(

)

Compute upstream traversal orders for the entire grid.

Returns

A vector of paths, each represented as a vector of 2D coordinates.

find_subroots()

std::pair< Mat< glm::ivec2 >, bool > hmap::DrainageBasinCellBased::find_subroots

(

)

Find subroots of the flow network.

Returns

A pair containing a matrix of subroots and a boolean status.

remove_lakes()

void hmap::DrainageBasinCellBased::remove_lakes

(

const Mat< glm::ivec2 > &

subroot

)

Remove lakes by draining local depressions.

Parameters

subroot

Matrix representing subroots.

get_main_channels()

std::vector< std::vector< glm::ivec2 > > hmap::DrainageBasinCellBased::get_main_channels

(

)

const

Get the main channel paths of the flow network.

Returns

A vector of main channels, each represented as a vector of 2D grid coordinates.

compute_response_times()

Array hmap::DrainageBasinCellBased::compute_response_times	(	const Array &	area_acc,
		const Array &	erodibility,
		float	m_exp
	)		const

Compute response times of the basin cells.

Parameters

area_acc	Accumulated area array.
erodibility	Erodibility coefficient array.
m_exp	Erodibility exponent.

Returns

An Array of response times.

update_elevations()

float hmap::DrainageBasinCellBased::update_elevations	(	const Array &	response_times,
		float	uplift_rate,
		const Array &	max_slope
	)

Update elevations based on response times and uplift.

Parameters

response_times	Array of cell response times.
uplift_rate	Rate of tectonic uplift.
max_slope	Maximum allowed slope array.

Returns

The maximum change in elevation.

accumulate_area_by_outlet()

void hmap::DrainageBasinCellBased::accumulate_area_by_outlet

(

Array &

acc

)

const

Accumulate contributing area down the network by outlet.

Parameters

acc	Output accumulated area array.

flow_breach()

void hmap::DrainageBasinCellBased::flow_breach

(

)

Perform flow breaching to resolve depressions.

Member Data Documentation

z

Array hmap::DrainageBasinCellBased::z

The heightmap array.

outlets_mask

Mat<int> hmap::DrainageBasinCellBased::outlets_mask

Mask indicating outlet cells.

receivers

Mat<glm::ivec2> hmap::DrainageBasinCellBased::receivers

Grid of receiver coordinates.

children

Mat<std::vector<glm::ivec2> > hmap::DrainageBasinCellBased::children

Grid of children coordinates.

roots

Mat<glm::ivec2> hmap::DrainageBasinCellBased::roots

Grid of basin root.

traversals

std::unordered_map<glm::ivec2, std::vector<glm::ivec2>, IVec2Hash> hmap::DrainageBasinCellBased::traversals

null_cell

const glm::ivec2 hmap::DrainageBasinCellBased::null_cell = glm::ivec2(-1, -1)

Constant representing an.

---

The documentation for this class was generated from the following files:

• HighMap/include/highmap/hydrology/drainage_basin_cell_based.hpp
• HighMap/src/hydrology/drainage_basin_cell_based.cpp
