hmap::Texture Class Reference

A class to represent a multi-channel texture using planar hmap::Array storage. More...

#include <texture.hpp>

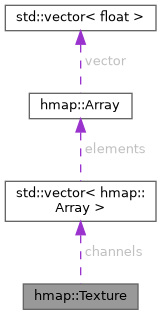

Collaboration diagram for hmap::Texture:

Public Member Functions
	Texture ()=default
	Construct an empty Texture object.
	Texture (glm::ivec2 shape, int num_channels)
	Construct a new Texture object with shape and channel count.
	Texture (glm::ivec2 shape, int num_channels, float fill_value)
	Construct a new Texture object with shape, channel count and fill value.
	Texture (const Array &array)
	Construct a single-channel Texture from an Array.
	Texture (const Array &r, const Array &g, const Array &b)
	Construct a 3-channel Texture from three Arrays.
	Texture (const Array &r, const Array &g, const Array &b, const Array &a)
	Construct a 4-channel Texture from four Arrays.
	Texture (const std::vector< Array > &channels)
	Construct a Texture from a list of Arrays.
	Texture (const std::string &fname, bool flip_j=false)
	Constructs a new Texture object from an image file.
int	num_channels () const
	Get the number of channels.
Array &	operator[] (size_t idx)
	Access channel Array by index.
const Array &	operator[] (size_t idx) const
Array &	channel (size_t idx)
	Access channel Array by index.
const Array &	channel (size_t idx) const
float &	operator() (int i, int j, int c)
	Access element at (i, j) in channel c.
const float &	operator() (int i, int j, int c) const
	Access element at (i, j) in channel c (const).
glm::vec3	get_pixel3 (int i, int j) const
	Read 3-channel color at (i, j) as glm::vec3.
glm::vec4	get_pixel4 (int i, int j) const
	Read 4-channel color at (i, j) as glm::vec4.
void	set_pixel (int i, int j, const glm::vec3 &color)
	Write 3-channel color at (i, j) from glm::vec3.
void	set_pixel (int i, int j, const glm::vec4 &color)
	Write 4-channel color at (i, j) from glm::vec4.
float	max () const
	Find the maximum value in all channels.
float	min () const
	Find the minimum value in all channels.
void	remap (float vmin=0.f, float vmax=1.f)
	Remap the texture values to a new range.
Texture	resample_to_shape (glm::ivec2 new_shape_xy) const
	Resamples the texture to a new 2D shape (x, y).
cv::Mat	to_cv_mat () const
	Convert the texture to an OpenCV matrix.
std::vector< uint8_t >	to_img_8bit (bool flip_y=false) const
	Convert the texture to an 8-bit image represented as a vector.
void	to_png (const std::string &fname, int depth=CV_8U) const
	Saves the Texture as an image file (e.g. PNG).

Public Attributes
glm::ivec2	shape = glm::ivec2(0, 0)
	Shape of the texture in 2D space (x, y).
std::vector< Array >	channels
	Vector of planar Array channels.

Detailed Description

A class to represent a multi-channel texture using planar hmap::Array storage.

The Texture class represents a multi-channel image/texture. Each channel is stored as a separate Array object, allowing direct use of Array functions and operators on individual channels without copying.

Examples

ex_mixbox.cpp.

Constructor & Destructor Documentation

Texture() [1/8]

hmap::Texture::Texture ( )

default

Construct an empty Texture object.

Texture() [2/8]

hmap::Texture::Texture	(	glm::ivec2	shape,
		int	num_channels
	)

Construct a new Texture object with shape and channel count.

Parameters

shape	2D shape of the texture.
num_channels	Number of channels.

Texture() [3/8]

hmap::Texture::Texture	(	glm::ivec2	shape,
		int	num_channels,
		float	fill_value
	)

Construct a new Texture object with shape, channel count and fill value.

Parameters

shape	2D shape of the texture.
num_channels	Number of channels.
fill_value	The value to fill all channels with.

Texture() [4/8]

hmap::Texture::Texture ( const Array &  array )

explicit

Construct a single-channel Texture from an Array.

Parameters

array

The single channel Array.

Texture() [5/8]

hmap::Texture::Texture	(	const Array &	r,
		const Array &	g,
		const Array &	b
	)

Construct a 3-channel Texture from three Arrays.

Texture() [6/8]

hmap::Texture::Texture	(	const Array &	r,
		const Array &	g,
		const Array &	b,
		const Array &	a
	)

Construct a 4-channel Texture from four Arrays.

Texture() [7/8]

hmap::Texture::Texture ( const std::vector< Array > &  channels )

explicit

Construct a Texture from a list of Arrays.

Texture() [8/8]

hmap::Texture::Texture ( const std::string &  fname, bool  flip_j = false  )

explicit

Constructs a new Texture object from an image file.

Parameters

fname	The name of the file to load the texture from.
flip_j	If true, flip the image vertically on load.

Member Function Documentation

num_channels()

int hmap::Texture::num_channels ( ) const

inline

Get the number of channels.

operator[]() [1/2]

Array & hmap::Texture::operator[] ( size_t  idx )

inline

Access channel Array by index.

operator[]() [2/2]

const Array & hmap::Texture::operator[] ( size_t  idx ) const

inline

channel() [1/2]

Array & hmap::Texture::channel ( size_t  idx )

inline

Access channel Array by index.

channel() [2/2]

const Array & hmap::Texture::channel ( size_t  idx ) const

inline

operator()() [1/2]

float & hmap::Texture::operator() ( int  i, int  j, int  c  )

inline

Access element at (i, j) in channel c.

operator()() [2/2]

const float & hmap::Texture::operator() ( int  i, int  j, int  c  ) const

inline

Access element at (i, j) in channel c (const).

get_pixel3()

glm::vec3 hmap::Texture::get_pixel3	(	int	i,
		int	j
	)		const

Read 3-channel color at (i, j) as glm::vec3.

get_pixel4()

glm::vec4 hmap::Texture::get_pixel4	(	int	i,
		int	j
	)		const

Read 4-channel color at (i, j) as glm::vec4.

set_pixel() [1/2]

void hmap::Texture::set_pixel	(	int	i,
		int	j,
		const glm::vec3 &	color
	)

Write 3-channel color at (i, j) from glm::vec3.

set_pixel() [2/2]

void hmap::Texture::set_pixel	(	int	i,
		int	j,
		const glm::vec4 &	color
	)

Write 4-channel color at (i, j) from glm::vec4.

max()

float hmap::Texture::max

(

)

const

Find the maximum value in all channels.

min()

float hmap::Texture::min

(

)

const

Find the minimum value in all channels.

remap()

void hmap::Texture::remap	(	float	vmin = 0.f,
		float	vmax = 1.f
	)

Remap the texture values to a new range.

resample_to_shape()

Texture hmap::Texture::resample_to_shape

(

glm::ivec2

new_shape_xy

)

const

Resamples the texture to a new 2D shape (x, y).

to_cv_mat()

cv::Mat hmap::Texture::to_cv_mat

(

)

const

Convert the texture to an OpenCV matrix.

to_img_8bit()

std::vector< uint8_t > hmap::Texture::to_img_8bit

(

bool

flip_y = false

)

const

Convert the texture to an 8-bit image represented as a vector.

to_png()

void hmap::Texture::to_png	(	const std::string &	fname,
		int	depth = CV_8U
	)		const

Saves the Texture as an image file (e.g. PNG).

Examples

ex_mixbox.cpp.

Member Data Documentation

shape

glm::ivec2 hmap::Texture::shape = glm::ivec2(0, 0)

Shape of the texture in 2D space (x, y).

channels

std::vector<Array> hmap::Texture::channels

Vector of planar Array channels.

---

The documentation for this class was generated from the following files:

• HighMap/include/highmap/texture.hpp
• HighMap/src/tensor/texture.cpp
